ACTIVE
Sample rate (max) (Msps) |
125 |
Resolution (Bits) |
14 |
Number of input channels |
2 |
Interface type |
DDR LVDS, Parallel CMOS |
Analog input BW (MHz) |
600 |
Features |
Low Power |
Rating |
HiRel Enhanced Product |
Peak-to-peak input voltage range (V) |
2 |
Power consumption (typ) (mW) |
277 |
Architecture |
Pipeline |
SNR (dB) |
73.4 |
ENOB (Bits) |
11.5 |
SFDR (dB) |
88 |
Operating temperature range (°C) |
-55 to 125 |
Input buffer |
No |

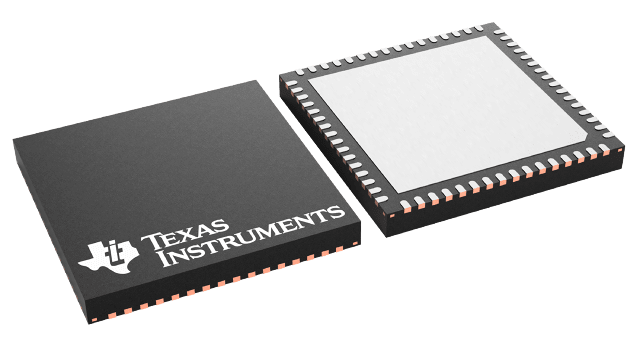

VQFN (RGC)-64-81 mm² 9 x 9
The ADS4245 is a low-speed variant of the ADS42xx ultralow-power family of dual-channel, 14-bit analog-to-digital converters (ADCs). Innovative design techniques are used to achieve high-dynamic performance, while consuming extremely low power with 1.8V supply. This topology makes the ADS4245 well-suited for multi-carrier, wide-bandwidth communications applications.
The ADS4245 has gain options that can be used to improve SFDR performance at lower full-scale input ranges. These device includes a dc offset correction loop that can be used to cancel the ADC offset. Both DDR (double data rate) LVDS and parallel CMOS digital output interfaces are available in a compact VQFN-64 PowerPAD™ package.
The device includes internal references while the traditional reference pins and associated decoupling capacitors have been eliminated. The ADS4245 is specified over the military temperature range (–55°C to 125°C).
