0
ACTIVE
Resolution (Bits) |
16 |
Number of input channels |
1 |
Interface type |
Serial |
Architecture |
Delta-Sigma Modulator |
Input type |
Differential |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
5 |
Input voltage range (min) (V) |
0 |
Features |
Excitation Current Sources (iDACs), Oscillator |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
64 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
82 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.5 |
TSSOP (PW)-16-32 mm² 5 x 6.4
WELL LINK CHIPS GROUP CO.,LIMITED FLAT/RM 1802 BEVERLY HOUSE 93-107 LOCKHART ROAD WANCHAI HK

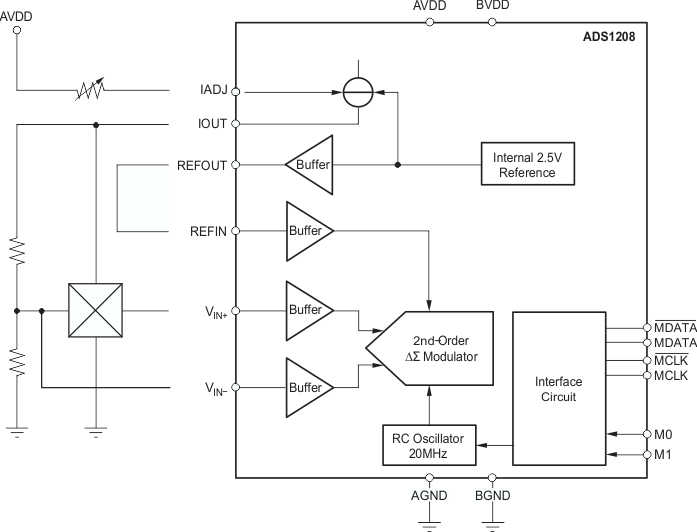

 modulator
operating at a 10MHz clock rate. The specified
input range is ±100mV, optimized for current
measurement with a Hall sensor, especially in motor
control applications. The ADS1208 contains a
programmable current source for sensor biasing and
has integrated input buffers for fast settling of the
sample capacitors; it also requires only a minimum of
external components. The differential analog input
offers low noise and excellent common-mode rejection.</p></p> </ti-view-more> <div class=)
 modulator
operating at a 10MHz clock rate. The specified
input range is ±100mV, optimized for current
measurement with a Hall sensor, especially in motor
control applications. The ADS1208 contains a
programmable current source for sensor biasing and
has integrated input buffers for fast settling of the
sample capacitors; it also requires only a minimum of
external components. The differential analog input
offers low noise and excellent common-mode rejection.</p></p> </div> </ti-tab-panel> </ti-tab-container> <div class=)
