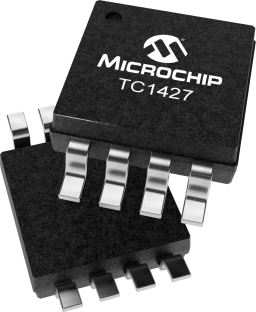

TC1427

In Production

The TC1426/27/28 are a family of 1.2 A dual high- speed gate drivers. CMOS fabrication is used for low power consumption and high efficiency. These devices are fabricated using an epitaxial layer to effectively short out the intrinsic parasitic transistor responsible for CMOS latch-up. They incorporate a number of other design and process refinements to increase their long-term reliability. The TC1426 is compatible with the bipolar DS0026, but only draws 1/5 of the quiescent current. The TC1426/27/28 are also compatible with the TC426/27/28, but with 1.2 A peak output current rather than the 1.5 A of the TC426/27/28 devices. Other compatible drivers are the TC4426/27/28 and the TC4426A/27A/28A. The TC4426/27/28 have the added feature that the inputs can withstand negative voltage up to 5 V...

Microchip Technology TC1427 Product Info

16 April 2026 0

Parameters

Capacitive Load Drive

1000 pF in 38 ns

MOSFET Driver Type

Low Side

Supply Voltage Max V (volt)

16

Peak Sink Current A (ampere)

1.2

Peak Source Current A (ampere)

1.2

Propagation Delay tD1 ns (nanosecond)

75

Propagation Delay tD2 ns (nanosecond)

75

Sink Resistance Ω (ohm)

8

Source Resistance Ω (ohm)

12

Fall Time tF ns (nanosecond)

35

Rise Time tR ns (nanosecond)

25

# of Outputs

2

Output Type

Non-inverting

Integrated MOSFETs

External

Peak Low-Side Source Current (Ampere)

1.2

Supply Voltage Min V (volt)

4.5

Low-Side Source Resistance Typ (Ohms) Ω (ohm)

12

Low-Side Sink Resistance Typ (Ohms) Ω (ohm)

8

Low-Side Rise Time (ns)

35

Low-Side Fall Time (ns)

25

Low-Side Turn-On Prop Delay (ns)

75

Low Side Turn-off Propagation delay (ns)

75

Temp Range (T-Ambient) Min °C (degrees Celsius)

0

Temp Range (T-Ambient) Max °C (degrees Celsius)

70

Output Configuration

Low-Side

Features

  • Latch-Up Protected: Will Withstand
  • 500 mA Reverse Output Current
  • ESD Protected: ±2 kV
  • High Capacitive Load Drive Capability: 1,000 pF in 38 ns
  • Wide Operating Range: 4.5 V to 16 V
  • Low Delay Time: 75 ns Max
  • Logic Input Threshold Independent of Supply Voltage
  • Output Voltage Swing to Within 25 mV of Ground or VDD
  • Low Output Impedance : 8 Ω
  • Description

    The TC1426/27/28 are a family of 1.2 A dual high- speed gate drivers. CMOS fabrication is used for low power consumption and high efficiency. These devices are fabricated using an epitaxial layer to effectively short out the intrinsic parasitic transistor responsible for CMOS latch-up. They incorporate a number of other design and process refinements to increase their long-term reliability. The TC1426 is compatible with the bipolar DS0026, but only draws 1/5 of the quiescent current. The TC1426/27/28 are also compatible with the TC426/27/28, but with 1.2 A peak output current rather than the 1.5 A of the TC426/27/28 devices. Other compatible drivers are the TC4426/27/28 and the TC4426A/27A/28A. The TC4426/27/28 have the added feature that the inputs can withstand negative voltage up to 5 V with diode protection circuits. The TC4426A/27A/28A have matched input to output leading edge and falling edge delays, tD1 and tD2, for processing short duration pulses in the 25 ns range. All of the above drivers are pin compatible. The high-input impedance TC1426/27/28 drivers are CMOS/TTL input-compatible, do not require the speed-up needed by the bipolar devices, and can be directly driven by most PWM ICs. This family of devices is available in inverting and non-inverting versions. Specifications have been optimized to achieve low-cost and high-performance devices, well-suited for the high-volume manufacturer.
