In Production
Capacitive Load Drive |
500 pF in 25 ns |
MOSFET Driver Type |
Low Side |
Supply Voltage Max V (volt) |
16 |
Peak Sink Current A (ampere) |
0.5 |
Peak Source Current A (ampere) |
0.5 |
Propagation Delay tD1 ns (nanosecond) |
30 |
Propagation Delay tD2 ns (nanosecond) |
30 |
Sink Resistance Ω (ohm) |
16 |
Source Resistance Ω (ohm) |
16 |
Fall Time tF ns (nanosecond) |
25 |
Rise Time tR ns (nanosecond) |
25 |
# of Outputs |
1 |
Output Type |
Inverting |
Integrated MOSFETs |
External |
Peak Low-Side Source Current (Ampere) |
0.5 |
Supply Voltage Min V (volt) |
4.5 |
Low-Side Source Resistance Typ (Ohms) Ω (ohm) |
16 |
Low-Side Sink Resistance Typ (Ohms) Ω (ohm) |
16 |
Low-Side Rise Time (ns) |
25 |
Low-Side Fall Time (ns) |
25 |
Low-Side Turn-On Prop Delay (ns) |
30 |
Low Side Turn-off Propagation delay (ns) |
30 |
Temp Range (T-Junction) Min °C (degrees Celsius) |
- |
Temp Range (T-Junction) Max °C (degrees Celsius) |
150 |
Temp Range (T-Ambient) Min °C (degrees Celsius) |
-40 |
Temp Range (T-Ambient) Max °C (degrees Celsius) |
85 |
Output Configuration |
Low-Side |

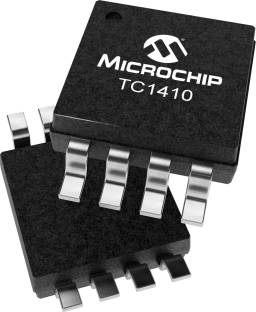

The TC1410/1410N are 0.5 A CMOS buffer/gate drivers. They will not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5 V of noise spiking of either polarity occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of current of either polarity being forced back into their output. All terminals are fully protected against up to 4 kV of electrostatic discharge. As MOSFET gate rivers, the TC1410/1410N can easily switch 500 pF gate capacitance in 25 ns with matched rise and fall times, and provide low enough impedance in both the ON and the OFF states to ensure the MOSFET’s intended state will not be affected, even by large transients. The rise and fall time edges are matched to allow driving short-duration inputs with greater accuracy.
