• DC-to >3.2Gbps throughput
• 210ps typical propagation delay (IN-to-Q)
• <20ps within-device skew
• <150ps rise/fall times
• Prevents outputs from oscillating
• Ultra-low jitter design
• <1psRMS cycle-to-cycle jitter
• <10psPP total jitter
• <1psRMS random jitter
• <10psPP deterministic jitter
• High-speed LVDS outputs
• 2.5V ±5% power supply operation
• Industrial temperature range: -40°C to +85°C

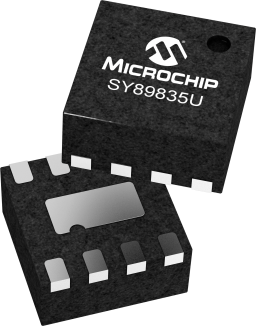

• Available in 8-pin (2mm x 2mm) MLF® package

The SY89835U is a 2.5V, high-speed 2GHz differential Low Voltage Differential Swing (LVDS) 1:2 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 20ps over supply voltage and temperature. A unique Fail-Safe Input (FSI) protection prevents metastable conditions when no signal is present or when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops sufficiently below 100 mV).The SY89835U is part of Micrel's high-speed clock synchronization family. For applications that require a different I/O combination, consult Micrel's web site, and choose from a comprehensive product line of highspeed, low-skew fanout buffers, translators and clock generators.
