• Precision 325mV LVDS buffer
• DC-to >3.2Gbps throughput
• <300ps typical propagation delay (IN-to-Q)
• <100ps rise/fall times
• Prevents output from oscillating when input is invalid
• Ultra-low jitter design
• <1psRMS cycle-to-cycle jitter
• <10psPP total jitter
• <1psRMS random jitter
• <10psPP deterministic jitter
• High-speed LVDS output
• 2.5V ±5% power supply operation
• Industrial temperature range: -40°C to +85°C

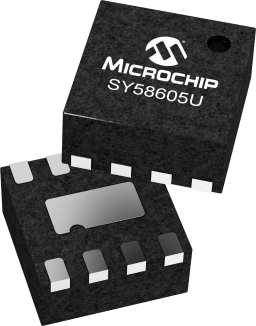

• Available in 8-pin (2mm x 2mm) DFN package

The SY58605U is a 2.5V, high-speed, fully differential LVDS buffer optimized to provide less than 10pspp total jitter. The SY58605U can process clock signals as fast as 2GHz or data patterns up to 3.2Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC- or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated voltage reference (VREF-AC) is provided to bias the VT pin. The output is 325mV LVDS, with rise/fall times guaranteed to be less than 100ps.The SY58605U operates from a 2.5V ±5% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require CML or LVPECL outputs, consider Micrel's SY58603U and SY58604U, buffers with 400mV and 800mV output swings respectively. The SY58605U is part of Micrel's high-speed, Precision Edge® product line.
