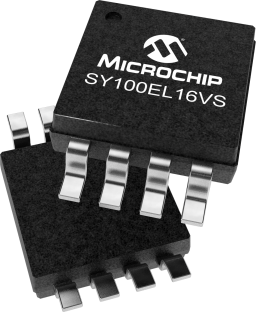

SY100EL16VS
  • SY100EL16VS

SY100EL16VS

In Production

The SY100EL16VS are differential receivers with variable output swing. The devices are functionally equivalent to the EL16V devices with an input that control the amplitude of the outputs.The operational range of the EL16VS control input is from VBB (max. swing) to VCC (min. swing). Simple control of the output swing can be obtained by a variable resistor between the VBB pin and VCC with the wiper driving VCTRL.The EL16VS provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBBpin should be used only as a bias for the EL16VS as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01mF capacitor.Under open input conditions (pulled to VEE), internal input cl...

Microchip Technology SY100EL16VS Product Info

16 April 2026 0

Parameters

Input

PECL

Output

PECL

Supply Voltage

3.3/5V

Max Freq (GHz)

0

Icc (mA)

26

OE

False

Input Mux

False

Number Of Outputs

0

Max Prop Delay (ps)

425

Features

    • 3.3V and 5V power supply options
    • High bandwidth output transitions
    • Internal 75KO pull-down resistors on inputs
    • Functionally equivalent to SY100EL16V with variable output swing
    • Improved output waveform characteristics
    • Available in 8-pin SOIC and 8-pin (3mm) MSOP

Description

The SY100EL16VS are differential receivers with variable output swing. The devices are functionally equivalent to the EL16V devices with an input that control the amplitude of the outputs.The operational range of the EL16VS control input is from VBB (max. swing) to VCC (min. swing). Simple control of the output swing can be obtained by a variable resistor between the VBB pin and VCC with the wiper driving VCTRL.The EL16VS provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBBpin should be used only as a bias for the EL16VS as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01mF capacitor.Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.
