• Input voltage range: 2.5V to 5.5V
• Fixed output voltages down to 1.0V
• ±2% Room temperature accuracy
• Low quiescent current: 38µA
• Stable with 2.2µF ceramic output capacitors
• Low dropout voltage: 260mV @ 500mA
• Auto discharge and internal enable pulldown
• Thermal-shutdown and current-limit protection
• 6-pin 1.2mm x 1.2mm extra thin DFN package
• 6-pin 1.2mm x 1.2mm thin DFN package

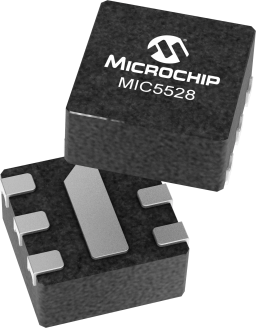

The MIC5528 is a low-power, μCap, low dropout regulator designed for optimal performance in a very-small footprint. It is capable of sourcing up to 500mA of output current while only drawing 38μA of operating current. This high-performance LDO is a μCap design in a thermally enhanced 1.2mm x 1.2mm extra thin (0.4mm ht.) DFN package. It operates with small ceramic output capacitor for stability, thereby reducing required board space.

Ideal for battery-operated applications, the MIC5528 offers ±2% accuracy, extremely low dropout voltage (260mV @ 500mA), and can regulate output voltages down to 1.0V. Equipped with a TTL logic-compatible enable pin, the MIC5528 can be put into a zero-off-mode current state, drawing no current when disabled.

The MIC5528 is a μCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost for space-critical applications. The MIC5528 has an operating junction temperature range of -40°C to 125°C.
