In Production
VIN Min (V) V (volt) |
2.5 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
1.8/2.8/1.8, 1.8/2.8/2.8, 3.3/1.8/1.2, 3.3/1.8/1.5 |
IOUT #1 Max mA (milliampere) |
150 |
IOUT #2 Max mA (milliampere) |
150 |
Quiescent Current µA (microampere) |
96 |
Voltage Drop Typ (mV) |
180 |
Accuracy (+/-) % |
3 |
Adjustable VOUT |
No |
Reverse Battery |
No |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

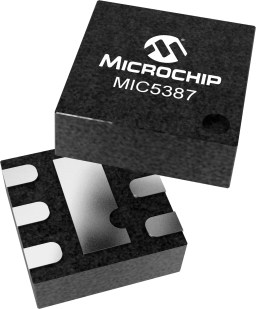

The MIC5387 is capable of 150mA from each output and offers high PSRR, making it an ideal solution for any portable electronic application. Ideal for battery powered applications, the MIC5387 offers 2% initial accuracy, low dropout voltage (180mV @ 150mA), and low ground current (typically 32µA per output).
The MIC5387 has an operating junction temperature range of -40°C to +125°C.
