0
In Production
VIN Min (V) V (volt) |
2.5 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
See Datasheet |
IOUT #1 Max mA (milliampere) |
150 |
IOUT #2 Max mA (milliampere) |
150 |
Quiescent Current µA (microampere) |
57 |
Voltage Drop Typ (mV) |
155 |
Accuracy (+/-) % |
3 |
Adjustable VOUT |
No |
Reverse Battery |
No |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

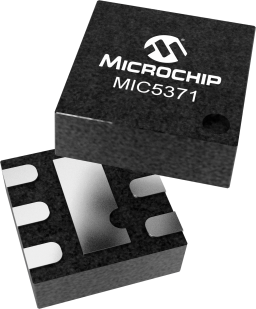

The MIC5370/1 is an advanced dual LDO ideal for powering general purpose portable devices. Ideal for battery-powered applications, the MIC5370/1 offers 2% initial accuracy, low dropout voltage (155mV @ 150mA) and low ground current (typically 32µA per LDO). The MIC5370/1 can also be put into a zero off-mode current state, drawing virtually no current when disabled. When the MIC5371 is disabled, an internal resistive load is automatically applied to the output to discharge the output capacitor. This LDO offers fast transient response and high PSRR while consuming a minimum operating current.
