In Production
VIN Min (V) V (volt) |
2.5 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
1.2, 1.5, 3.3 |
IOUT #1 Max mA (milliampere) |
200 |
Rated IOUT Max mA (milliampere) |
200 |
Quiescent Current µA (microampere) |
29 |
Voltage Drop Typ (mV) |
180 |
Accuracy (+/-) % |
3 |
Adjustable VOUT |
No |
Reverse Battery |
No |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

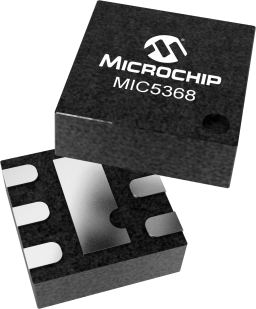

The MIC5367/8 is an advanced, general purpose linear regulator offering high power supply rejection (PSRR) in an ultra-small 1.6mm x 1.6mm package. The MIC5368 includes an auto-discharge feature that is activated when the enable pin is low. The MIC5367/8 is capable of sourcing 200mA peak (150mA continous) output current and offers high PSRR, making it an ideal solution for any portable electronic application.
Great for battery-powered applications, the MIC5367/8 offers 2% initial accuracy, low dropout voltage (180mV at 150mA), and low ground current (typically 29µA). The MIC5367/8 can also be put into a zero off-mode current state, drawing virtually no current when disabled.
The MIC5367/8 has an operating junction temperature range of - 40°C to 125°C.
