• Input voltage range: 2.5V to 5.5V
• 150mA guaranteed output current
• Stable with ceramic output capacitors
• Low dropout voltage: 180mV at 150mA
• Excellent Load/Line Transient Response
• Low quiescent current: 32µA
• High PSRR: 70dB
• Output discharge circuit (MIC5366)
• ±2% initial accuracy
• Thermal shutdown and current limit protection

The MIC5365/6 is an advanced general purpose linear regulator offering high power supply rejection (PSRR) in an ultra-small 1mm x 1mm package. The MIC5366 includes an auto-discharge feature that is activated when the enable pin is low. The MIC5365/6 is capable of sourcing 150mA output current and offers high PSRR, making it a great solution for any portable electronic application.

Ideal for battery-powered applications, the MIC5365/6 offers 2% initial accuracy, low dropout voltage (180mV at 150mA), and low ground current (typically 32µA). The MIC5365/6 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

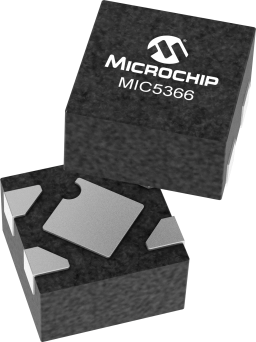

The MIC5365/6 is available in several advanced packages, occupying only 1mm² of PCB area, a 75% reduction in board area compared to SC-70. It is also available in an SC-70-5 package.

The MIC5365/6 has an operating junction temperature range of - 40°C to 125°C.
