In Production
VIN Min (V) V (volt) |
2.5 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
1.2, 2.1, 2.8, 3.3 |
IOUT #1 Max mA (milliampere) |
300 |
Rated IOUT Max mA (milliampere) |
300 |
Quiescent Current µA (microampere) |
38 |
Voltage Drop Typ (mV) |
225 |
Accuracy (+/-) % |
5 |
Adjustable VOUT |
No |
Reverse Battery |
No |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

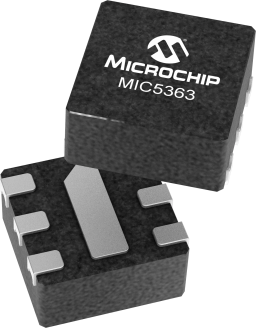

The MIC5363/4 is an advanced, 300mA LDO ideal for powering general purpose portable devices requiring a high power supply rejection ratio (PSRR).
The MIC5363/4 is designed to reject input noise and provide a low output noise regulator with fast transient response to respond to any load change quickly. The MIC5364 also incorporates an active discharge feature that switches a 30Ω NFET from VOUT to GND to discharge output capacitors when the part is disabled.
