Not Recommended for new designs
IGND Typical µA (microampere) |
38 |
IOUT #1 Max mA (milliampere) |
300 |
IOUT #2 Max mA (milliampere) |
300 |
Load Dump |
|
Noise Rms Freq Interval µV (microvolt) |
200 |
# of Out |
2 |
PSRR 1 kHz (dB) |
55 |
Driver Type |
Dual LDOs |
Rated IOUT Max mA (milliampere) |
300 |
Reverse Battery |
|
Reverse Current Protect |
|
Soft Start Pin |
|
VIN Max V (volt) |
5.5 |
VIN Min (V) V (volt) |
2.5 |
VOUT V (volt) |
1.2/1.0, 1.8/1.2, 2.8/1.2, 2.8/1.8, 3.3/2.8 |
Voltage Drop Typ (mV) |
220 |

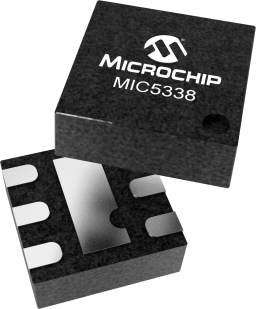

The MIC5338/9 is an advanced dual 300mA LDO ideal for powering general purpose portable devices requiring low output noise and excellent power supply rejection ratio (PSRR).
The MIC5338/9 provides two low noise outputs with fast transient response. Additionally the MIC5338/9 provides low quiescent current operation, using only 70µA with both outputs enabled. The MIC5339 also incorporates an active discharge feature that pulls down the output of the regulator when the part is disabled.
