In Production
VIN Min (V) V (volt) |
2.65 |
VIN Max V (volt) |
5.5 |
VOUT V (volt) |
1.8, 2.8, 3.3 |
IOUT #1 Max mA (milliampere) |
300 |
Rated IOUT Max mA (milliampere) |
300 |
Quiescent Current µA (microampere) |
90 |
Voltage Drop Typ (mV) |
150 |
Accuracy (+/-) % |
2 |
Adjustable VOUT |
Yes |
Reverse Battery |
No |
Bypass Pin |
Yes |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

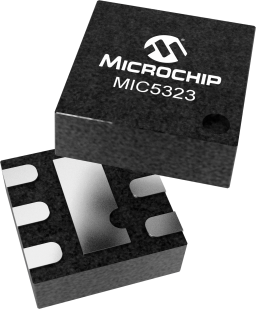

The MIC5323 is a high-performance, 300mA LDO regulator, offering extremely high PSRR and very low noise while consuming low ground current.
Ideal for battery operated applications, the MIC5323 features 2% accuracy, extremely low dropout voltage (120mV at 300mA), and low ground current at light load (typically 90µA). When disabled, the MIC5323 typically consumes less than 1µA.
The MIC5323 is a µCap design operating with small ceramic output capacitors for stability, thereby reducing required board space and component cost.
The MIC5323 is available in fixed output voltages and thin SOT-23-5 package. Additional voltage options are available.
