In Production
VIN Min (V) V (volt) |
2.7 |
VIN Max V (volt) |
7 |
VOUT V (volt) |
1.2, 2.5, 2.8, 3.3 |
IOUT #1 Max mA (milliampere) |
10 |
Rated IOUT Max mA (milliampere) |
10 |
Quiescent Current µA (microampere) |
1.8 |
Voltage Drop Typ (mV) |
100 |
Accuracy (+/-) % |
3 |
Adjustable VOUT |
No |
Reverse Battery |
Yes |
Bypass Pin |
No |
Current Limit |
Yes |
Shutdown EN |
Yes |
Power Good Signal |
No |
Thermal Shutdown |
No |

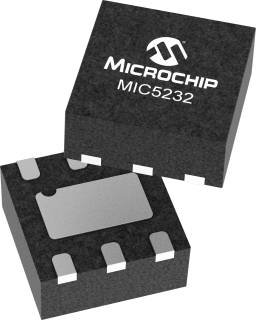

The MIC5232 is an ultra-low quiescent current, low-dropout linear regulator that is capable of operating from a single-cell lithium ion battery. Consuming only 1.8µA of quiescent current while operating, the MIC5232 is ideal for stand-by applications like powering real-time clocks or memory in battery-operated electronics.
The MIC5232 is capable of providing 10mA of output current and has low output noise, providing a small, efficient solution ideal for any keep-alive application including reverse current protection, keeping reverse leakage (VOUT > VIN) down to 20nA.
The MIC5232 is a µCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost.
The MIC5232 is available in SOT-23-5 package with an operating junction temperature range of -40°C to 125°C.
