• Input voltage range: VIN = 0.9V to 5.5V
• ±1.0% initial output tolerance
• Dropout down to 25mV @ 10A
• Filters out switching frequency noise on input
• Very high large signal bandwidth >500kHz
• PSRR >40dB at 500kHz
• Adjustable output voltage down to 0.5V
• Stable with any output capacitor
• Excellent line and load regulation specifications
• Logic controlled shutdown
• Current limit protection
• MSOP-10 packages
• Available -40°C to +125°C junction temperature

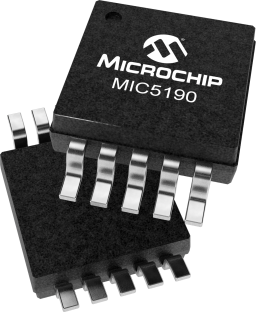

The MIC5190 is an ultra high-speed linear regulator. It uses an external N-Channel FET as its power device. The MIC5190 offers ultra high-speed to cope with the fast load demands of microprocessor cores, ASICs, and other high-speed devices. Signal bandwidths of greater than 500kHz can be achieved with a minimum amount of capacitance while at the same time keeping the output voltage clean, regardless of load demand. A powerful output driver delivers large MOSFETs into their linear regions, achieving ultra-low dropout voltage. 1.25V_IN±10% can be turned into 0.9V ±1% without the use of a large amount of capacitance. MIC5190 (0.5V reference) is optimized for output voltages of below 1.0V. The MIC5190 is offered in 10-lead MSOP-10 packages and has an operating junction temperature range of -40°C to +125°C.
