In Production
Capacitive Load Drive |
1000 pF in 12 ns |
MOSFET Driver Type |
Low Side |
Supply Voltage Max V (volt) |
18 |
Peak Sink Current A (ampere) |
1.5 |
Peak Source Current A (ampere) |
1.5 |
Propagation Delay tD1 ns (nanosecond) |
12 |
Propagation Delay tD2 ns (nanosecond) |
12 |
Sink Resistance Ω (ohm) |
3.5 |
Source Resistance Ω (ohm) |
3.5 |
Fall Time tF ns (nanosecond) |
12 |
Rise Time tR ns (nanosecond) |
12 |
# of Outputs |
1 |
Output Type |
Inverting |
Integrated MOSFETs |
External |
Peak Low-Side Source Current (Ampere) |
1.5 |
Supply Voltage Min V (volt) |
4.5 |
Low-Side Source Resistance Typ (Ohms) Ω (ohm) |
3.5 |
Low-Side Sink Resistance Typ (Ohms) Ω (ohm) |
3.5 |
Low-Side Rise Time (ns) |
12 |
Low-Side Fall Time (ns) |
12 |
Low-Side Turn-On Prop Delay (ns) |
29 |
Low Side Turn-off Propagation delay (ns) |
30 |
Temp Range (T-Junction) Min °C (degrees Celsius) |
-40 |
Temp Range (T-Junction) Max °C (degrees Celsius) |
125 |
Temp Range (T-Ambient) Min °C (degrees Celsius) |
- |
Temp Range (T-Ambient) Max °C (degrees Celsius) |
- |
Output Configuration |
Low-Side |

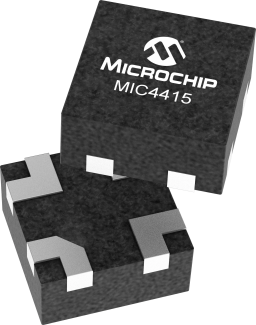

The MIC4414 and MIC4415 are low-side MOSFET gate drivers designed to switch an N-channel enhancement type MOSFET in low-side switch applications. The MIC4414 is a non-inverting driver and the MIC4415 is an inverting driver. These drivers feature short delays and high peak current to produce precise edges and rapid rise and fall times. The MIC4414/15 are powered from a 4.5 V to 18 V supply and can sink and source peak currents up to 1.5 A, switching a 1000 pF capacitor in 12 ns. The on-state gate drive output voltage is approximately equal to the supply voltage (no internal regulators or clamps). High supply voltages, such as 10 V, are appropriate for use with standard N-channel MOSFETs. Low supply voltages, such as 5V, are appropriate for use with many logic-level N-channel MOSFETs. In a low-side configuration, the gate driver can control a MOSFET that switches any voltage up to the rating of the MOSFET. The MIC4414 and MIC4415 are available in an ultra-small 4-pin 1.2 x 1.2mm thin QFN package and is rated for -40°C to +125°C junction temperature range.
