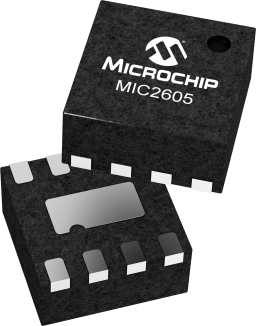

MIC2605
  • MIC2605

MIC2605

In Production

The MIC2605/6 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2605/6's internal 40V/0.5A switch and Schottky diode, allowing it to power large loads in a tiny footprint. The MIC2605/6 implements constant frequency 1.2MHz/2MHz PWM current mode control. The MIC2605/6 offers internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source. The MIC2605/6 has an operating junction temperature range of -40°C to +125°C....

Microchip Technology MIC2605 Product Info

16 April 2026 0

Parameters

VIN Min V (volt)

4.5

VIN Max V (volt)

20.0

VOUT Min V (volt)

5.0

VOUT Max V (volt)

40.0

Features

  • Wide input voltage range: 4.5V to 20V
  • Output voltage adjustable to 40V
  • 0.5A (min) / 0.8A(typ) switch current and Schottky diode
  • MIC2605 operates at 1.2MHz
  • MIC2606 operates at 2MHz
  • Programmable soft start
  • Stable with small size ceramic capacitors
  • High efficiency
  • Low input and output ripple
  • <10µA shutdown current
  • UVLO
  • Output over-voltage and over-temperature protection
  • -40°C to +125°C junction temperature range

Description

The MIC2605/6 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2605/6's internal 40V/0.5A switch and Schottky diode, allowing it to power large loads in a tiny footprint.

The MIC2605/6 implements constant frequency 1.2MHz/2MHz PWM current mode control. The MIC2605/6 offers internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source.

The MIC2605/6 has an operating junction temperature range of -40°C to +125°C.
