• 2.5V to 10V input voltage range
• Output voltage adjustable to 34V
• 1.2A(min)/1.7A (typ) switch current
• 600kHz PWM operation
• Stable with small size ceramic capacitors
• High efficiency
• Low input and output ripple
• <1 µA shutdown current
• UVLO
• Output over-voltage protection
• Over temperature shutdown
• -40 °C to +125 °C junction temperature range

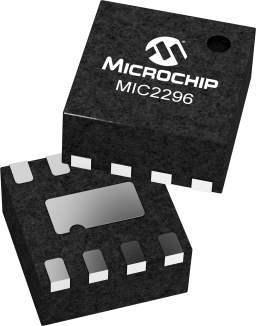

The MIC2296 is a 600kHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2296's internal 34V / 1.2A switch, allowing it to power large loads in a tiny footprint. The MIC2296 is a version of the MIC2295 1.2MHz, PWM DC/DC boost switching regulator, that offers improved efficiency resulting from 600kHz operation.

The MIC2296 implements constant frequency 600kHz PWM current mode control. The MIC2296 offers internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source.

The MIC2296 has an operating junction temperature range of -40°C to +125°C.
