• 2.5V to 10V input voltage
• Output voltage up to 34V
• 1.2A switch current
• 1.2MHz PWM operation
• 95mV feedback voltage
• Options for 15V and 34V
• Stable with ceramic capacitors
• <1% line and load regulation
• 1µA shutdown current
• Over temperature protection
• UVLO
• Low-profile Thin SOT23-5 package option
• -40ºC to +125ºC junction temperature range

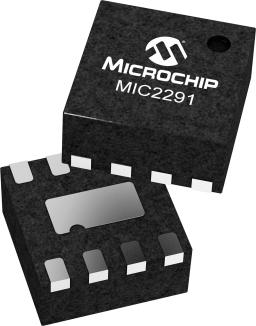

The MIC2291 is a 1.2MHz pulse-width modulation (PWM), boost-switching regulator that is optimized for high-current, white LED photo flash applications. With a guaranteed switch current of 1.2A, the MIC2291 easily drives a string of three white LEDs in series at 100mA, ensuring a high level of brightness and eliminating several ballast resistors.

The MIC2291 implements a constant frequency, 1.2MHz PWM control scheme. The high frequency PWM operation saves board space by reducing external component sizes. The added benefit of the constant frequency PWM scheme, in contrast to variable frequency topologies, is much lower noise and input ripple injected back to the battery source.

To optimize efficiency, the feedback voltage is set to only 95mV. This reduces the power dissipation in the current set resistor, and allows the lowest total output voltage, hence minimal current draw from the battery.

The MIC2291 is available with two levels of over-voltage protection, 15V, and 34V. This allows designers to choose the smallest possible external components with the appropriate voltage ratings for their applications.

The MIC2291 has a junction temperature range of -40ºC to +125°C.
