MIC2288
  • MIC2288
  • MIC2288

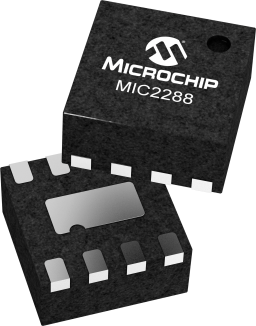

MIC2288

In Production

The MIC2288 is a 1.2MHz pulse-width modulation (PWM), DC/DC boost switching regulator. High power density is achieved with the MIC2288's internal 34V/1A switch, allowing it to power large loads in a tiny footprint. The MIC2288 implements a constant frequency 1.2MHz PWM current mode control scheme with internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM topology also reduces spurious switching noise and ripple to the input power source.The MIC2288 has a junction temperature range of -40°C to +125°C....

Microchip Technology MIC2288 Product Info

16 April 2026 0

Parameters

VIN Min V (volt)

2.5

VIN Max V (volt)

10.0

VOUT Min V (volt)

3.6

VOUT Max V (volt)

34.0

Features

  • 2.5V to 10V input voltage range
  • Output voltage adjustable to 34V
  • Over 1A switch current
  • 1.2MHz PWM operation
  • Stable with ceramic capacitors
  • High-efficiency
  • <1% line and load regulation
  • Low input and output ripple
  • <1µA shutdown current
  • UVLO
  • Output overvoltage protection
  • Over temperature shutdown
  • Thin SOT-23-5 package option
  • -40°C to +125°C junction temperature range

Description

The MIC2288 is a 1.2MHz pulse-width modulation (PWM), DC/DC boost switching regulator. High power density is achieved with the MIC2288's internal 34V/1A switch, allowing it to power large loads in a tiny footprint. The MIC2288 implements a constant frequency 1.2MHz PWM current mode control scheme with internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM topology also reduces spurious switching noise and ripple to the input power source.The MIC2288 has a junction temperature range of -40°C to +125°C.
