Not Recommended for new designs
Topology |
Boost |
+Vin min (V) |
0.9 |
+Vin max (V) |
15 |
Output Current |
1A BJT |
Package |
MSOP |
Product Type |
LED Backlight |
VOUT |
36 |
llim Typ (A) |
1.1 |
llim Max (A) |
0 |
lq Typ |
120µA |
Vfb (V) |
0.22 |
Tol Typ % |
±10 |
Duty Cycle Max |
0.67 |
Freq (Hz) |
20K |
VEN (V) |
0 |
Ceramic Cap |
Yes |
Oja (C/W) |
160 |

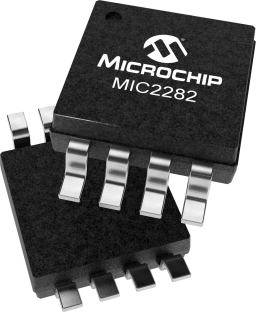

The MIC2282 is a boost LED driver optimized for single cell operation from alkaline, NiMH, or Li-Ion batteries. The MIC2282 operates with an input voltage between 0.9V to 15V, driving a string of series LEDs up to 33V. The combination of a low feedback voltage of 220mV and an operating current of 120µA provides a high efficiency solution that prolongs battery life.
The MIC2282 requires only five external components (diode, inductor, sense resistor, input capacitor, and output capacitor) to implement a low cost LED boost regulator. It is available in a compact 8-pin MSOP package with an operating range from -40°C to +125°C.
