• 3V to 14.5V input voltage range
• Adjustable output voltage down to 0.8V
• 500kHz PWM operation
• Up to 95% efficiency
• Output pre-biased protection
• Built-in 2.2? drivers to drive two N-Channel MOSFETs
• Adaptive gate drive increases efficiency
• Simple, externally-compensated voltage-mode PWM control
• Short minimum ON time of 30ns allowing very low duty cycle
• Fast transient response
• Adjustable current limit senses high-side N-Channel MOSFET current
• Hiccup mode short-circuit protection
• No external current-sense resistor
• Internal soft-start current source
• Dual function COMP and EN pin allows low-power shutdown
• Available in a small size 10-pin MSOP and 10-pin MSOP ePad package

The MIC2169B is a high-efficiency, simple to use 500kHz PWM synchronous buck control IC housed in a small MSOP-10 ePad package. It allows compact DC/DC solutions with a minimal external component count and cost. The device features high output driver capability to drive loads up to 30A.

The MIC2169B operates from a 3V to 14.5V input, without the need of any additional bias voltage. The output voltage can be precisely regulated down to 0.8V. The adaptive all N-Channel MOSFET drive scheme allows efficiencies over 95% across a wide load range within the smallest possible printed circuit board space area.

The MIC2169B senses current across the high-side N-Channel MOSFET, eliminating the need for an expensive and lossy current-sense resistor. Current limit accuracy is maintained by a positive temperature coefficient that tracks the increasing R_DS(ON) of the external MOSFET. Further cost and space are saved by the internal in-rush-current limiting digital soft-start. The MIC2169B is identical to the MIC2169A except it supports pre-bias loads. Internal pre-bias circuit prevents output voltage drooping and excessive reverse inductor current when powering up with a pre-bias voltage at the output.

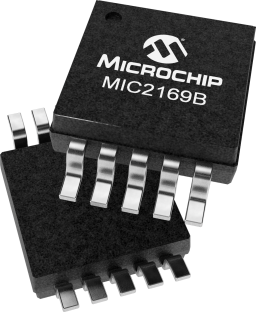

The MIC2169B is available in a 10-pin MSOP and a thermally-capable 10-pin ePad MSOP package, with a wide junction operating range of -40°C to +125°C.
