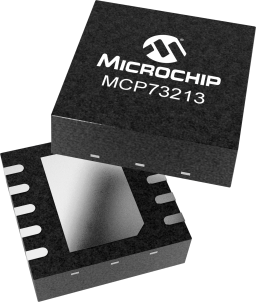

MCP73213
  • MCP73213

MCP73213

In Production

The MCP73213 is a dual cell, highly integrated Li-Ion battery charge management controller for use in space-limited and cost-sensitive applications. The MCP73213 can accept an absolute maximum of 18V input and provides a 13V overvoltage protection. The output current can be programmabed to be between 130 mA and 1100 mA. The MCP73213 is specified over the ambient temperature range of -40°C to +85°C and is available in a 10 lead, 3x3 mm DFN package.

Microchip Technology MCP73213 Product Info

16 April 2026 0

Parameters

Linear Mode

Yes

# of cells

2

Int/Ext FET

Int

Vin Max (V)

16

Vin Min (V)

4

Voltage Regulation Accuracy (%)

0.6

Temperature Monitor

No

Charge Safety Timers

Yes

Max. Thermal Regulation

Yes

Features

  • Complete Linear Charge Management Controller:- Integrated Input Overvoltage Protection- Integrated Pass Transistor- Integrated Current Sense- Integrated Reverse Discharge Protection
  • Constant Current / Constant Voltage Operationwith Thermal Regulation
  • Resistor Programmable Fast Charge Current: 130 mA - 1100 mA
  • 4.15V Undervoltage Lockout (UVLO)
  • 18V Absolute Maximum Input
  • Overvoltage Protection (OVP): 13V
  • Preconditioning of Deeply Depleted Cells- Available options: 10% or Disable
  • Battery Charge Voltage Options:- 8.20V, 8.40V, 8.7V or 8.8V
  • Packaging: DFN-10 (3 mm x 3 mm)

Description

The MCP73213 is a dual cell, highly integrated Li-Ion battery charge management controller for use in space-limited and cost-sensitive applications. The MCP73213 can accept an absolute maximum of 18V input and provides a 13V overvoltage protection. The output current can be programmabed to be between 130 mA and 1100 mA. The MCP73213 is specified over the ambient temperature range of -40°C to +85°C and is available in a 10 lead, 3x3 mm DFN package.
