In Production
Linear Mode |
Yes |
# of cells |
1 |
Int/Ext FET |
Int |
Vin Max (V) |
16 |
Vin Min (V) |
4 |
Voltage Regulation Accuracy (%) |
0.5 |
Temperature Monitor |
No |
Charge Safety Timers |
Yes |
Max. Thermal Regulation |
Yes |

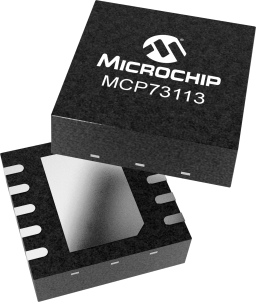

The MCP73113 is a single cell, highly integrated Li-Ion battery charge management controller for use in space-limited and cost-sensitive applications. The MCP73113 can accept an absolute maximum of 18V input and provides a 6.5V overvoltage protection. The output current can is programmable to be between 130 mA and 1100 mA. The MCP73113 is fully specified over the ambient temperature range of -40°C to +85°C and is available in a 10 lead, 3x3 mm DFN package.
