MCP6N16
  • MCP6N16
  • MCP6N16

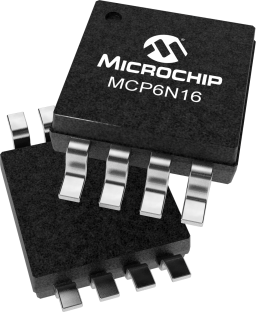

MCP6N16

In Production

The MCP6N16 is a zero-drift instrumentation amplifier designed for single-supply operation with rail-to-rail input (no common mode crossover distortion) and output performance. The supply voltage range is low enough to support many portable applications. All devices are fully specified from -40ºC to +125ºC. Each device has EMI filters at the input pins, providing superior EMI rejection. This family has three minimum gain options (1, 10 and 100 V/V) in order to allow the user to optimize the input offset voltage and input noise for different applications....

Microchip Technology MCP6N16 Product Info

16 April 2026 2

Parameters

Channels

1

CMRR (dB) Min at DC

112

CMRR (dB) Typ at 60Hz

125

Enhanced EMI Protection

Yes

GBWP Typ(kHz)

500

Gain Max (V/V)

10000

Iq Max (uA)

1600

Noise Density @ 1kHz (nV/rtHz)

45

Vdd Max (V)

5.5

Vdd Min (V)

1.8

Vos Max µV (microvolt)

17

Features

  • Vos: ± 17 µV (Gmin = 100)
  • Low Offset Drift: ± 60 nV/ºC
  • CMRR: 112 dB minimum
  • PSRR: 110 dB minimum
  • Low Gain Error: ±0.15% maximum
  • Minimum Gain (Gmin) Options: 1, 10 and 100 V/V
  • Rail-to-Rail Input and Output
  • Gain Set by Two External Resistors
  • Bandwidth: 500 kHz (typical)
  • Vdd: 1.8V to 5.5V
  • Iq: 1.1 mA (typical)
  • Power Saving (Enable) Pin: EN
  • Electromagnetic Interference Rejection Ratio (EMIRR): 111 dB at 2.4 GHz
  • Extended Temperature Range: -40ºC to +125ºC

    • Description

    The MCP6N16 is a zero-drift instrumentation amplifier designed for single-supply operation with rail-to-rail input (no common mode crossover distortion) and output performance. The supply voltage range is low enough to support many portable applications. All devices are fully specified from -40ºC to +125ºC. Each device has EMI filters at the input pins, providing superior EMI rejection. This family has three minimum gain options (1, 10 and 100 V/V) in order to allow the user to optimize the input offset voltage and input noise for different applications.
