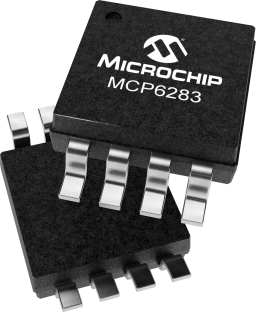

MCP6283
  • MCP6283
  • MCP6283
  • MCP6283
  • MCP6283

MCP6283

In Production

The Microchip Technology Inc. MCP6281/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 5 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.2V, while drawing 450 µA (typical) quiescent current. Additionally, the MCP6281/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300 mV. This family of operational amplifiers is designed with Microchip’s advanced CMOS process. The MCP6285 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input p...

Microchip Technology MCP6283 Product Info

16 April 2026 10

Parameters

CMRR Min (dB)

65

Enhanced EMI Protection

No

Gain Bandwidth Product kHz (kilohertz)

5000

Iq Max (uA)

570

Input Voltage Noise Density (nV/rt(Hz))

16

Iq Typical (µA)

445

Operating Voltage Max V (volt)

6.0

Operating Voltage Min V (volt)

2.2

PM (deg)

65

PSRR Min (dB)

70

# Per Package

1

Slew Rate (V/µs)

2.5

Vos Max µV (microvolt)

3000

Features

  • Input Offset Voltage: ±3 mV (max)
  • Quiescent Current: 445 µA (typical)
  • Common Mode Rejection Ratio: 65 dB (typical)
  • Power Supply Rejection Ratio: 70 dB (typical)
  • Rail-to-Rail Input/Output
  • Supply Voltage Range: 2.2V to 6V
  • Gain Bandwidth Product: 5 MHz (typical)
  • Slew Rate: 2.5V/µs (typical)
  • Unity Gain Stable
  • Chip Select/ Shutdown feature available on the MCP6283
  • Extended Temperature Range: -40°C to +125°C

Description

The Microchip Technology Inc. MCP6281/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 5 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.2V, while drawing 450 µA (typical) quiescent current. Additionally, the MCP6281/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300 mV. This family of operational amplifiers is designed with Microchip’s advanced CMOS process. The MCP6285 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in Low-power mode. The MCP6281/1R/2/3/4/5 family operates over the Extended Temperature Range of -40°C to +125°C. It also has a power supply range of 2.2V to 6.0V.
