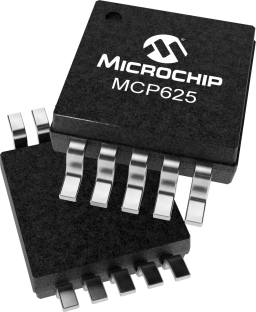

MCP625
  • MCP625
  • MCP625

MCP625

In Production

The MCP62x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device...

Microchip Technology MCP625 Product Info

16 April 2026 10

Parameters

CMRR Min (dB)

65

Enhanced EMI Protection

No

Gain Bandwidth Product kHz (kilohertz)

20000

Iq Max (uA)

3600

Input Voltage Noise Density (nV/rt(Hz))

13

Iq Typical (µA)

2500

Operating Voltage Max V (volt)

5.5

Operating Voltage Min V (volt)

2.5

PM (deg)

60

PSRR Min (dB)

61

# Per Package

2

Slew Rate (V/µs)

10

Vos Max µV (microvolt)

200

Features

  • mCal Technology: On chip self-calibration
  • 20MHz GBWP
  • High Output Drive Current
  • Rail-to-Rail Output
  • Two Chip Select/Calibration Pins

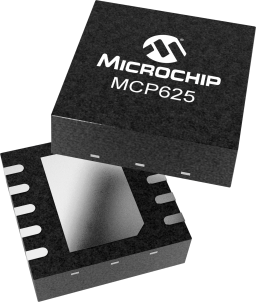

  • Small 10-pin 3x3 DFN Package
  • AEC-Q100 Grade 1

Description

The MCP62x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device
