Voltage Reference Options
• Device VDD
• External VREF (buffered or unbuffered)
• Internal Bandgap (1.214V typ)

Output Gain Options:
• Unity (1x)
• 2x (when not using internal VDD as voltage source)

Power Down Modes
• Disconnects output buffer (High Impedance)
• Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)

Operating Voltage
• Full Specifications 2.7V to 5.5V
• Reduced Device Specifications 1.8V to 2.7V

Packages
• 16 Lead QFN (3mm x 3mm)

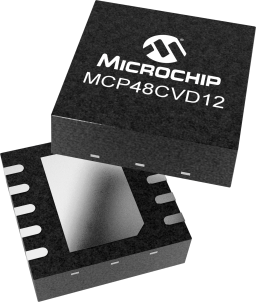

• 10 Lead DFN (3mm x 3mm)

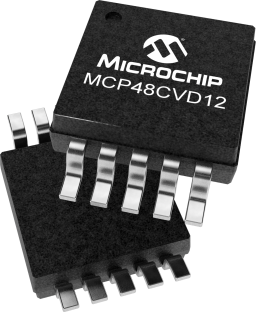

• 10 Lead MSOP

MCP48CVD12 is a dual channel, 10-bit, buffered voltage output Digital-to-Analog Converter (DAC) with volatile memory and a SPI Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers .25 LSB Integral Non-Linearity (INL) with low power consumption and a fast settling time of 4 µs. It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations, motor control applications and more.

For different resolutions and number of output channels, please check out our other parts in the MCP48CV family.
