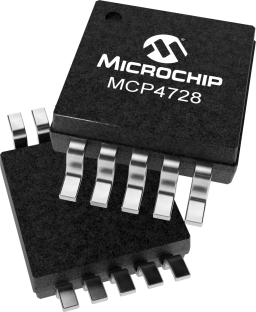

MCP4728
  • MCP4728

MCP4728

In Production

MCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up.We welcome questions, comments and recommendations for improvements to this page - please contact us at: DACwebrequests@microchip.com if you have any; please mention the part number in the email subject header....

Microchip Technology MCP4728 Product Info

16 April 2026 0

Parameters

Resolution

12

Number of Input Channels

4

Interface

I²C

INL Max LSB

13

Output Settling Time (μs)

6

Memory Type

Non-Volatile

Features

  • 12-Bit Resolution
  • 4 Buffered Voltage Outputs
  • Single-Supply Operation: 2.7V to 5.5V
  • On-Board Non-Volatile Memory (EEPROM)
  • Normal or Power-Down Mode
  • Internal or External Voltage Reference Selection
  • Rail-to-Rail Output
  • Low Power Consumption
  • ±0.2 LSB DNL (typical)
  • Address bits: User Programmable toEEPROM
  • Standard (100 kbps), Fast (400 kbps) and High Speed (3.4 Mbps) Modes
  • 10-lead MSOP Package
  • Extended Temperature Range: -40°C to +125°C
  • AEC-Q100 Grade 1 qualified

Description

MCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Converter with non-volatile memory and I2C compatible Serial Interface.


The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up.


We welcome questions, comments and recommendations for improvements to this page - please contact us at: DACwebrequests@microchip.com if you have any; please mention the part number in the email subject header.
