Non-Volatile Memory (EEPROM)
• Auto Recall of Saved DAC register setting
• Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)

Power-Down Modes:
• Disconnects output buffer
• Selection of VOUT pull-down resistors (640 kohm, 125 kohm, or 1 kohm)

Low Power Consumption
• Normal Operation: 210 µA typ.
• Power Down Operation: 60 nA typ. (PD1:PD0 = “11”)

Single-Supply Operation: 2.7V to 5.5V

I2C™ Interface:
• Eight Available Addresses
• Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes

Small 6-lead SOT-23 and DFN (2x2) Packages

Extended Temperature Range: -40°C to +125°C

AEC-Q100 Grade 1 qualified

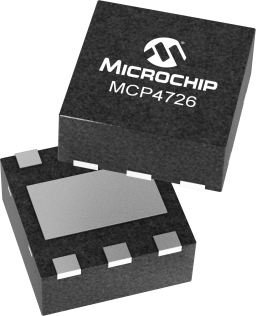

MCP4726 is a single channel, 12-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.

The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and configuration bit values to be saved at power off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.
