• Dual Resistor Network
• Potentiometer or Rheostat configuration options
• 8-bit: 256 Resistors (257 Steps)
• 5kΩ
• 10kΩ
• 50kΩ
• 100 kΩ
• Zero-Scale to Full-Scale Wiper operation
• Low Wiper Resistance: 75Ω (typ.)
• Absolute (Rheostat): 50 ppm typical(0°C to 70°C)
• Ratiometric (Potentiometer): 15 ppm typical
• 100 kHz
• 400 kHz
• 3.4 MHz
• Brown-out reset protection (1.5V typical)
• Serial Interface Inactive current (2.5 uA typ.)
• High-Voltage Tolerant Digital Inputs: Up to 12.5V
• 2.7V to 5.5V - Device Characteristics Specified
• 1.8V to 5.5V - Device Operation
• 2 MHz (typ.) for 5.0 kΩ device
• Extended temperature range (-40°C to +125°C)
• AEC-Q100 Grade 1 quarlified

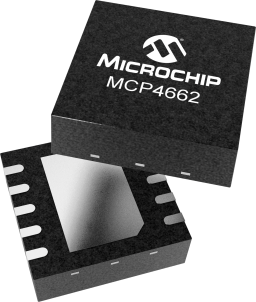

The MCP466X devices are dual channel, non-volatile, 8-bit (257 wiper steps) digital potentiometers with EEPROM and an I2C compatible interface. The MCP466X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP466X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
