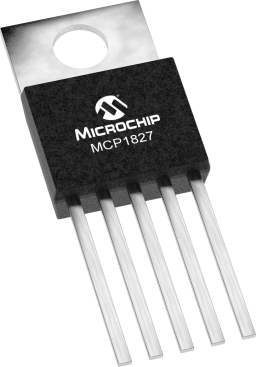

MCP1827

In Production

The MCP1827 is a 1.5A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO) with shutdown and power good functions (fixed output version only). It is a feature-rich and thermally enhanced 1.5A LDO in DDPAK-5 and TO-220-5 packages.

Microchip Technology MCP1827 Product Info

16 April 2026 0

Parameters

VIN Min (V) V (volt)

2.3

VIN Max V (volt)

6

VOUT V (volt)

0.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0

IOUT #1 Max mA (milliampere)

1500

Rated IOUT Max mA (milliampere)

1500

Quiescent Current µA (microampere)

120

Voltage Drop Typ (mV)

330

Adjustable VOUT

Yes

Reverse Battery

No

Bypass Pin

No

Current Limit

Yes

Shutdown EN

Yes

Power Good Signal

Yes

Thermal Shutdown

Yes

Features

  • Up to 1.5A output load current
  • Low dropout voltage 330 mV (typ)
  • Output voltage from 0.8V to 5.0V, both fixed and adjustable
  • Stable with 1.0 µF ceramic output cap
  • Power good output
  • Low supply current 120 µA (typ)
  • Low shutdown current of less than 0.1 µA (typ)
  • DDPAK-5, TO-220-5 Pb-free packages

Description

The MCP1827 is a 1.5A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO) with shutdown and power good functions (fixed output version only). It is a feature-rich and thermally enhanced 1.5A LDO in DDPAK-5 and TO-220-5 packages.
