In Production
VIN Min (V) V (volt) |
2.3 |
VIN Max V (volt) |
6 |
VOUT V (volt) |
0.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0 |
IOUT #1 Max mA (milliampere) |
1000 |
Rated IOUT Max mA (milliampere) |
1000 |
Quiescent Current µA (microampere) |
120 |
Voltage Drop Typ (mV) |
250 |
Accuracy (+/-) % |
2 |
Adjustable VOUT |
No |
Reverse Battery |
No |
Current Limit |
Yes |
Bypass Pin |
No |
Shutdown EN |
No |
Power Good Signal |
No |
Thermal Shutdown |
Yes |

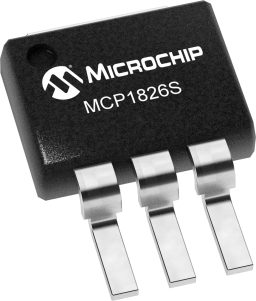

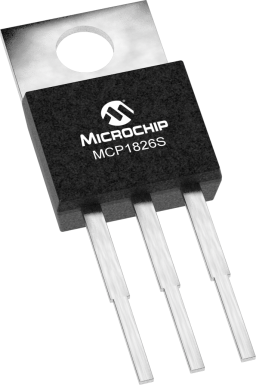

The MCP1826S is a 1A, ceramic output cap stable, low output voltage, Low Dropout Regulator (LDO). It is part of the family of LDOs that includes 500 mA MCP1825S and 1.5A MCP1827S. The MCP1826S comes in thermally enhanced DDPAK-3 and TO-220-3 packages as well as space-efficient SOT223-3 package.
