In Production
Capacitive Load Drive |
1000 pF in 11.5 ns |
MOSFET Driver Type |
Low Side |
Supply Voltage Max V (volt) |
18 |
Peak Sink Current A (ampere) |
1.5 |
Peak Source Current A (ampere) |
1.5 |
Propagation Delay tD1 ns (nanosecond) |
32 |
Propagation Delay tD2 ns (nanosecond) |
24 |
Sink Resistance Ω (ohm) |
3 |
Source Resistance Ω (ohm) |
4.5 |
Fall Time tF ns (nanosecond) |
10 |
Rise Time tR ns (nanosecond) |
11 |
# of Outputs |
2 |
Output Type |
Inverting |
Integrated MOSFETs |
External |
Peak Low-Side Source Current (Ampere) |
1.5 |
Supply Voltage Min V (volt) |
4.5 |
Low-Side Source Resistance Typ (Ohms) Ω (ohm) |
4.5 |
Low-Side Sink Resistance Typ (Ohms) Ω (ohm) |
3 |
Low-Side Rise Time (ns) |
11.5 |
Low-Side Fall Time (ns) |
10 |
Low-Side Turn-On Prop Delay (ns) |
25 |
Low Side Turn-off Propagation delay (ns) |
24 |
Temp Range (T-Junction) Min °C (degrees Celsius) |
- |
Temp Range (T-Junction) Max °C (degrees Celsius) |
150 |
Temp Range (T-Ambient) Min °C (degrees Celsius) |
-40 |
Temp Range (T-Ambient) Max °C (degrees Celsius) |
125 |
Output Configuration |
Low-Side |

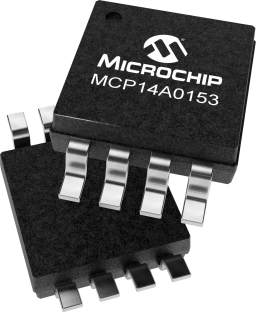

The MCP14A0153/4/5 MOSFET gate drivers that are capable of providing up to 1.5 A of peak current while operating from a single 4.5 V to 18 V supply. There are three output configurations available; dual inverting (MCP14A0153), dual noninverting (MCP14A0154) and complementary (MCP14A0155). These devices feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.
The MCP14A0153/4/5 MOSFET gate drivers offer enhanced control with Enable functionality. The active-high Enable pins can be driven low to drive the corresponding outputs of the MCP14A0153/4/5 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pins floating for standard operation.
