Any Frequency between 3.5 kHz and 100 MHz accurate to 6 decimal places

Low Power Consumption of 4.5 mA Typical

CMOS-Compatible Output

Industry-Standard Packages:
• 7.0 mm × 5.0 mm
• 5.0 mm × 3.2 mm
• 3.2 mm × 2.5 mm
• 2.5 mm x 2.0 mm
• 2.0 mm x 1.6 mm
• 1.6 mm × 1.2 mm

Wide Temperature Range: Up to –40°C to +125°C

Excellent Shock and Vibration Immunity:
• Tested in accordance with MIL-STD-883 and MIL-STD-202
• Capable of Surviving 50,000g Shock, with 70g Vibration Resistance

High Stability: Up to ±20 ppm

Wide Temperature Range: Up to –40°C to +125°C

High Reliability: 20x Better MTF Than Quartz Oscillators

Wide Supply Voltage: 1.71V to 3.63V

Lead Free & RoHS Compliant

Tin Lead solder dip option available upon request

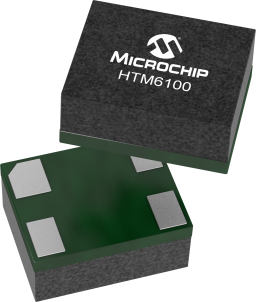

The HTM61xx family of MEMS oscillators was designed for environmentally demanding military applications and ruggedized equipment. It has industry-leading low-power consumption, ultra-small packages and exceptional frequency stability over a wide temperature range, up to 125°C. The HTM61xx MEMS oscillator family has been tested in accordance with MIL-STD-883 and MIL-STD-202 and is available in ultra-small packages from 1.6 mm x 1.2 mm to 7.0 mm x 5.0 mm, which are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators. HTM61xx is an excellent choice for use as a reliable reference clock in applications from precision guided munitions to high temperature industrial applications.
