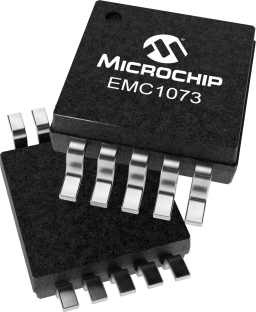

EMC1073
  • EMC1073

EMC1073

In Production

The EMC1073 and EMC1074 are high accuracy, low cost, System Management Bus (SMBus) temperature sensor with pin selectable SMBus addresses. Each device provides ±1° accuracy (max) for external diode temperatures and ±2°C accuracy (max) for the internal diode temperature. The EMC1073 monitors three temperature channels (two external and one internal). The EMC1074 monitors four temperature channels (three external and one internal).

Microchip Technology EMC1073 Product Info

16 April 2026 1

Parameters

NumOfChannelsMonitored

3

Max. Accuracy @ 25° ; (° ;)

1

Typical Accuracy

0.25

Features

Ideality configuration

InterfaceType

I2C, SMBus

Resolution (bits)

11

Features

  • ±0.25°C Typ Accuracy (20°C < TDIODE < 110°C)
  • 0.125°C resolution
  • Supports 2N3904 and AMD diodes
  • Anti-parallel diodes for extra diode support (EMC1074)
  • ±0.25°C Typ Accuracy (-5°C < TA < 100°C)
  • 3.3V Supply Voltage
  • Programmable SMBus Address
  • Programmable temperature limits for ALERT# and THERM#
  • Available in small 10-pin MSOP RoHS Compliant Package
  • Notebook Computers
  • Desktop Computers
  • Industrial
  • Embedded applications

Description

The EMC1073 and EMC1074 are high accuracy, low cost, System Management Bus (SMBus) temperature sensor with pin selectable SMBus addresses.

Each device provides ±1° accuracy (max) for external diode temperatures and ±2°C accuracy (max) for the internal diode temperature. The EMC1073 monitors three temperature channels (two external and one internal). The EMC1074 monitors four temperature channels (three external and one internal).
