Wide Frequency Range: 2 KHz to 80 MHz

Ultra–Low Power Consumption: 1.3 mA/1.5µA (Active/Standby)

Ultra-Small Footprints :
• 1.6 mm x 1.2 mm
• 2.0 mm x 1.6 mm
• 2.5 mm x 2.0 mm
• 3.2 mm x 2.5 mm
• 5.0 mm x 3.2 mm
• 7.0 mm x 5.0 mm

Frequency Select Input Supports 2 Predefined Frequencies

High Stability: ±20, ±25, ±50 ppm

Wide Temperature Range:
• Automotive: –40°C to 125°C
• Industrial: –40°C to 85°C
• Ext. Commercial: –20° to 70°C
• For AEC-Q qualified, refer to DSA60xx Family

Excellent Shock & Vibration Immunity: Qualified to MIL-STD-883

High Reliability: 20x Better MTTF Than Quartz Oscillators

Supply Range of 1.71V to 3.63V

Short Sample Lead Time: <2 weeks

Lead Free & RoHS Compliant

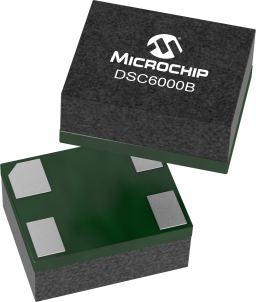

The DSC60XXB family of MEMS oscillators combines industry-leading low power consumption and ultra-small packages with exceptional frequency stability and jitter performance over temperature. The single-output DSC6000B MEMS oscillators are excellent choices for use as clock references in small, battery-powered devices, such as wearable and Internet of Things (IoT) devices, where small size, low power consumption, and long-term reliability are paramount.

The Ultra-low power DSC60XXB family is available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm packages. Other package sizes include: 2.5 mm x 2.0 mm, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm, and 7.0 mm x 5.0 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application-specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

DSC60XXB provides improved jitter performance and wider temperature range over DSC6000 family and is the recommended ultra-low power MEMS oscillator for all new designs.

For an automotive-grade product, please refer to the DSA6000 family.
