Any Frequency Between:
• 2.3 MHz to 170 MHz (2.5V and 3.3V)
• 2.3 MHz to 125 MHz (1.8V)

Exceptional Total Stability Over Temperature
• ±20 ppm, ±25 ppm, ±50 ppm

Extended Temperature Range up to –40°C to +125°C

Low Phase Jitter (1 ps Typical)

Operating Voltage 1.8V/2.5V to 3.3V

Standby Mode for Battery Life Saving

Fast Startup Time (2.5 ms Typical)
• For AEC-Q100 qualified, refer to DSA1500 Family

Low Operation Current (6.5 mA Typical)

Ultra-Small Footprints:
• 2.0mm x 1.6mm, 2.5mm x 2.0mm, 3.2mm x 2.5mm, 5.0mm x 3.2mm, & 7.0mm x 5.0mm

High Reliability: 20x Better MTF than Quartz Oscillators

MIL-STD 883 Shock and Vibration Resistant

Lead-Free and RoHS-Compliant

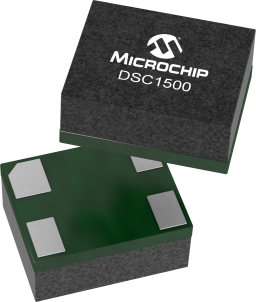

The DSC1500 family is an industry’s leading MEMS oscillator which offers excellent jitter and stability performance at a very low power over a wide range of supply voltage (1.71V to 3.63V) and temperature (–40°C to +125°C). The device operates from 2.3 MHz to 170 MHz with 2.5V and 3.3V supply voltage and from 2.3 MHz to 125 MHz with 1.8V supply voltage.

The devices incorporate an all-silicon resonator that is extremely robust. A MEMS-based design allows for a higher level of reliability, making the DSC1500 ideal for rugged, industrial, and portable applications where stress, shock, and vibrations can damage quartz crystal-based systems. The devices are also an excellent choice as clock reference for small, battery-operated devices, such as wearables and Internet-of-Things (IoT) devices.

DSC1501/21 LVCMOS Medium drive (2.5V/3.3V)

DSC1502/22 LVCMOS Standard drive (2.5V/3.3V)

DSC1503/23 LVCMOS Low drive (2.5V/3.3V)

DSC1504/24 LVCMOS Low drive (1.8V)

DSC1505/25 LVCMOS Standard drive (1.8V)

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.
