AEC-Q100 qualified

Output Frequency: 1 – 100MHz LVCMOS

Spread Spectrum options:
• Center spread: ±0.25%, ±0.5%, ±1.0%, ±1.5%, ±2.0%, ±2.5%,
• Down spread: -0.25% , -0.5%, -1.0%, -1.5%, -2.0%, -3.0%

Ultra-low power consumption: 3mA (active), 1.5 µA stdby

Wide supply voltage range: 1.71V -3.63V VDD

Ultra-small package size: 1.6 x 1.2 mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm

Operating Temperature Range
• Automotive Grade 1: -40°C to 125°C
• Automotive Grade 2: -40°C to 105°C
• Automotive Grade 3: -40°C to 85°C

Excellent shock and vibration immunity

High reliability

Lead free and RoHS compliant

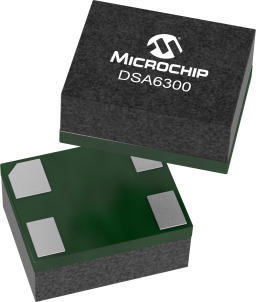

The DSA63XX is part of Automotive MEMS oscillator family that offers wide range of spread spectrum clock output for EMI reduction. The devices support up to ±2.5% or -3% spread spectrum that can achieve up to 15 dB Electro-Magnetic Interference (EMI) reduction on fundamental frequency (more on high harmonics) . Because of industry standard package and pin options, customers can solve last minute EMI problems simply by putting the new DSA63XX on their current board layout with no redesign required.

The DSA63xx family is available in ultra-small 1.6 mm x 1.2 mm, 2.0 mm x 1.6 mm, 2.5 mm x 2.0 m, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm and 7.0 mm x 5.0 mm packages. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool
