Automotive AEC-Q100 Qualified

Wide Frequency Range: 3.5 kHz to 100 MHz

Ultra-Low Power Consumption: 3 mA/1 μA (Active/Standby)

Ultra-Small Footprints
• 1.6 mm x 1.2 mm
• 2.0 mm x 1.6 mm
• 2.5 mm x 2.0 mm
• 3.2 mm x 2.5 mm
• 5.0 mm x 3.2 mm
• 7.0 mm x 5.0 mm

Frequency Select Input Supports Two Pre-Defined Frequencies

High Stability: ±20 ppm, ±25 ppm, ±50 ppm

Wide Temperature Range
• Automotive Grade 1: –40°C to +125°C
• Automotive Grade 2: –40°C to +105°C
• Automotive Grade 3: –40°C to +85°C

Excellent Shock and Vibration Immunity: Qualified to MIL-STD-883

High Reliability: 20x Better MTF Than Quartz Oscillators

Wide Supply Voltage: 1.71V to 3.63V

Short Sample Lead Time: <1 weeks

Lead Free & RoHS Compliant

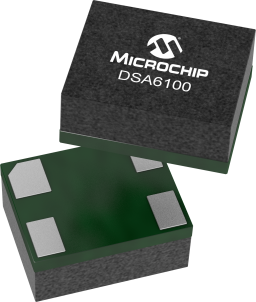

The DSA61xx family of MEMS oscillators combines industry-leading low-power consumption, ultra-small packages with exceptional frequency stability, and jitter performance over temperature. The single-output DSA61xx MEMS oscillators are excellent choices for use as clock references in automotive applications in which small size, low power consumption, and long-term reliability are paramount. The device family is

Automotive Grade and AEC-Q100 qualified.

The Ultra-low power DSA61XX family is available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm, 3.2 mm x 2.5 mm, 5.0 mm x 3.2 mm and 7.0 mm x 5.0 mm packages. Other package size include: 2.5 mm x 2.0 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.
