CL220

In Production

CL220 is a high voltage, temperature-compensated, 20mA constant current regulator. The device operates at up to 220V, and is accurate to ±10% over a 5.0 - 160V range. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL220 is to drive LEDs with a constant current of 20mA. Multiple CL220s can also be used in parallel to provide higher currents such as 40mA, 60mA, 80mA, and so on. The device is available in the TO-252 (D-PAK) and TO-220 packages....

Microchip Technology CL220 Product Info

16 April 2026 0

Parameters

+Vin min (V)

5.0

+Vin max (V)

220

Vout min (V)

5.0

Vout max (V)

220

Output Current (mA)

20

Dimming

External FET

Parallelable

Yes

Package

DPAK, TO-220

Features

--

Features

    • 5.0 to 220V operating range (VA-B)
    • 20mA ±10% at 5.0 - 160V
    • 0.01% / °C typical temperature coefficient

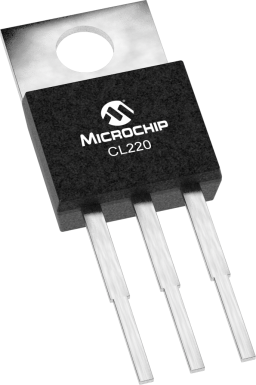

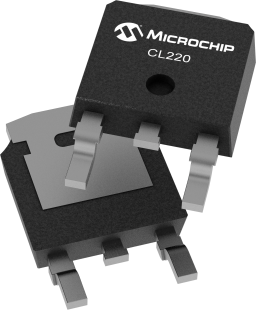

    • Available in TO-252 (D-PAK) and TO-220 packages
    • Can be paralleled for higher current

Description

CL220 is a high voltage, temperature-compensated, 20mA constant current regulator. The device operates at up to 220V, and is accurate to ±10% over a 5.0 - 160V range. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL220 is to drive LEDs with a constant current of 20mA. Multiple CL220s can also be used in parallel to provide higher currents such as 40mA, 60mA, 80mA, and so on. The device is available in the TO-252 (D-PAK) and TO-220 packages.
