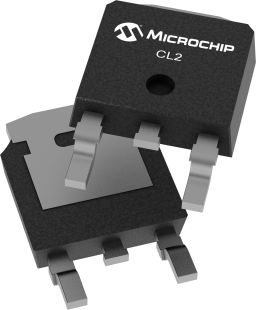

CL2

In Production

CL2 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±10% at an input voltage of 5.0 - 90V. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL2 is to drive LEDs with a constant current of 20mA. Multiple CL2s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in TO-243AA (SOT-89), TO-252 (D-PAK), and TO-92 packages....

Microchip Technology CL2 Product Info

16 April 2026 0

Parameters

+Vin min (V)

5.0

+Vin max (V)

90

Vout min (V)

5.0

Vout max (V)

90

Output Current (mA)

20

Dimming

External FET

Parallelable

Yes

Package

TO-252, TO-92, SOT-89

Features

--

Features

    • 5.0 to 90V operating range (VA-B)
    • 20mA ±10% at 5.0 - 90V
    • 0.01%/°C typical temperature coefficient
    • Available in TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages
    • Can be paralleled for higher current

Description

CL2 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±10% at an input voltage of 5.0 - 90V. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL2 is to drive LEDs with a constant current of 20mA. Multiple CL2s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in TO-243AA (SOT-89), TO-252 (D-PAK), and TO-92 packages.
