In Production
Density |
128 Kbit |
Endurance |
1,000,000 |
Max. Clock Freq. |
1 MHz |
Operating Voltage Max (V) |
5.5 |
Operating Voltage Min (V) |
1.7 |
Page Size (Bytes) |
64 |
Write Protect Scheme |
Full Array |
Data Retention |
200 |

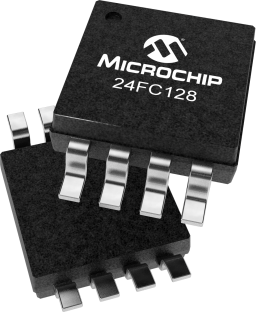

The Microchip Technology Inc. 24FC128 is a 16K x 8 (128 Kbit) Serial Electrically Erasable PROM (EEPROM), capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 128K boundary. Functional address lines allow up to eight devices on the same bus, for up to 1 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC (3.90 mm and 5.28 mm), TSSOP, MSOP, DFN, and Chip Scale packages.
