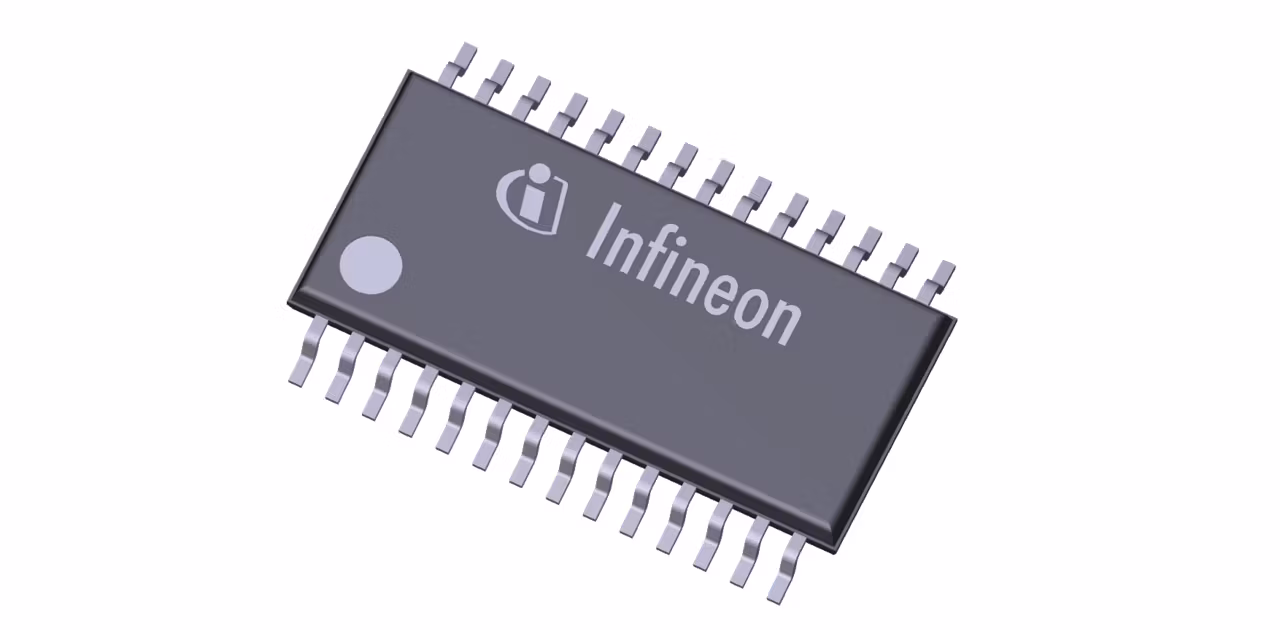

XMC1302-T028X0016 AB
  • XMC1302-T028X0016 AB

XMC1302-T028X0016 AB

Active and preferred

The XMC1300 series belongs to the XMC1000 Family of industrial microcontrollers which are based on the ARM® Cortex®-M0 processor core. The XMC1300 series devices are the perfect choice for applications like digital power conversion and motor control. They integrate dedicated peripherals for Field Oriented Control (FOC), brushless (BLDC), brushed DC and PMSM motors and are supported with a development environment enabling short time-to market.

Infineon Technologies XMC1302-T028X0016 AB Product Info

16 April 2026 0

Parameters

A/D Input Lines (incl. FADC)

12

Additional Features

3x ACMP, Temp. Sensor, BCCU, POSIF, MATH co-processor, Special purpose timer CCU8

Budgetary Price €/1k

1.07

CAN Nodes

0

CPU

ARM Cortex-M0

Digital I/O Pins

26

DMA Channels

0

DSP Functionality

Yes

EEPROM Emulation

Yes

External Bus Interface

No

Family

XMC1300

Fast Flash Programming

No

Flash

16 kByte

Floating Point Unit

No

Frequency max

32 MHz

Instruction Width ([bits])

32/16

Number of ADC Modules

2

On-chip Clock Generation

Yes

On-chip Voltage Regulator

Yes

Oscillator Watchdog

Yes

Power Mode

Clock gating possible

Program Memory

16 kByte

Qualification

Industrial

Real Time Clock

Yes

Secondary Core

N/A

Serial I/O Interfaces

2

SRAM (incl. Cache)

16 kByte

SRAM

16 kByte

Temperature

-40 to 105°C

Timed I/O Pins (PWM, CAPCOM)

13

Timer/Counter

8

Touch/LED Matrix Control

No

Type of Memory

Flash

Type of Serial I/O Interfaces

UART, SPI, I²C, I²S

Watchdog Timer

Yes

Features

  • 32 MHz core / 64 MHz peripheral clock
  • Operating range 1.8 - 5.5 V, -40 - 105°C
  • 16KB Flash (ECC), 16KB RAM (parity)
  • MATH coprocessor (DIV, CORDIC)
  • 12-bit ADC, 1 Ms/s, 8 inputs, 2x S&H
  • 3x analog comparator, 30ns
  • 8 x 16-bit capture, compare, PWM timers
  • Hall sensor / encoder interface
  • LED brightness & color control (BCCU)
  • 2 serial channel, SPI, UART, I2C, LIN
  • Real Time Clock, watchdog, PRNG
  • TSSOP-28, 9.7x4.4 mm², 0.65mm, 26 IO
