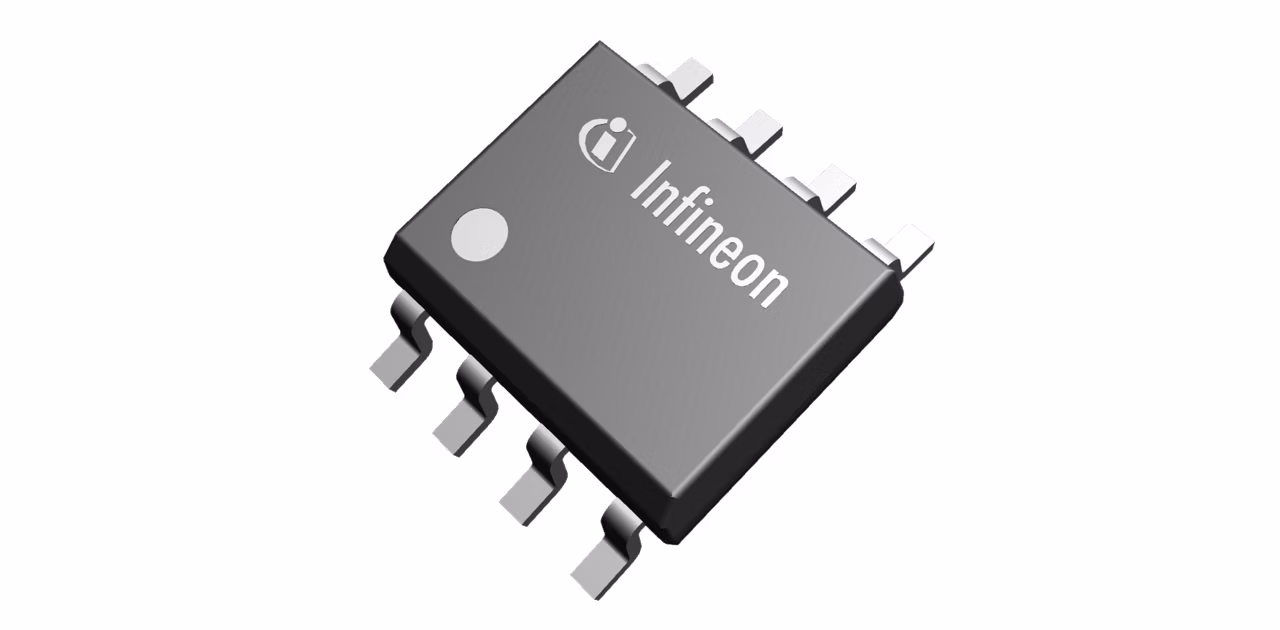

XDPL8210
  • XDPL8210

XDPL8210

Active and preferred

The XDP™ control IC XDPL8210 is a digital, single-stage, quasi-resonant flyback controller with high power factor and high precision primary-side controlled constant current output. Main application fields for XDPL8210 control IC are cost-effective, constant current, single-stage LED drivers. XDPL8210 provides an easy way to design high performance LED drivers with various features. Sophisticated algorithms feature flicker-free dimming below 1%, supporting IEC61000-3-2 Class C designs over wide load range.

Infineon Technologies XDPL8210 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.73

Comments

Digital flyback controller with power factor corrected constant current output for dimmable and programmable LED driver

Output characteristics

Constant current+limited power

Switching Frequency range

20 kHz to 180 kHz

Topology

HPF Flyback

Type

Digital Controller

Apps

Power adapters and chargers, DIN rail power supply solutions, LED lighting system design

Features

  • Programmable constant current output
  • Dimming with PWM input and Analog output
  • Supports AC and DC input
  • Nominal I/P V range 100V AC - 277V AC
  • Reference board efficiency > 90%
  • High Power Factor (>0.9) & Low THD(<15%)
  • primary-side control O/P current typ ±2%
  • Adaptive thermal management with on-chip
  • Automatic Selection of Best Mode
  • DCM (Discontinuous conduction mode)
  • ABM (Active burst mode)

Description

  • Enables high performance LED driver design
  • Reduced BOM, minimized system cost
  • Increased design flexibility
  • Improved lifetime of the driver
  • Fast design cycle for reduced T2M
