TLT9255WLC
  • TLT9255WLC

TLT9255WLC

Active and preferred

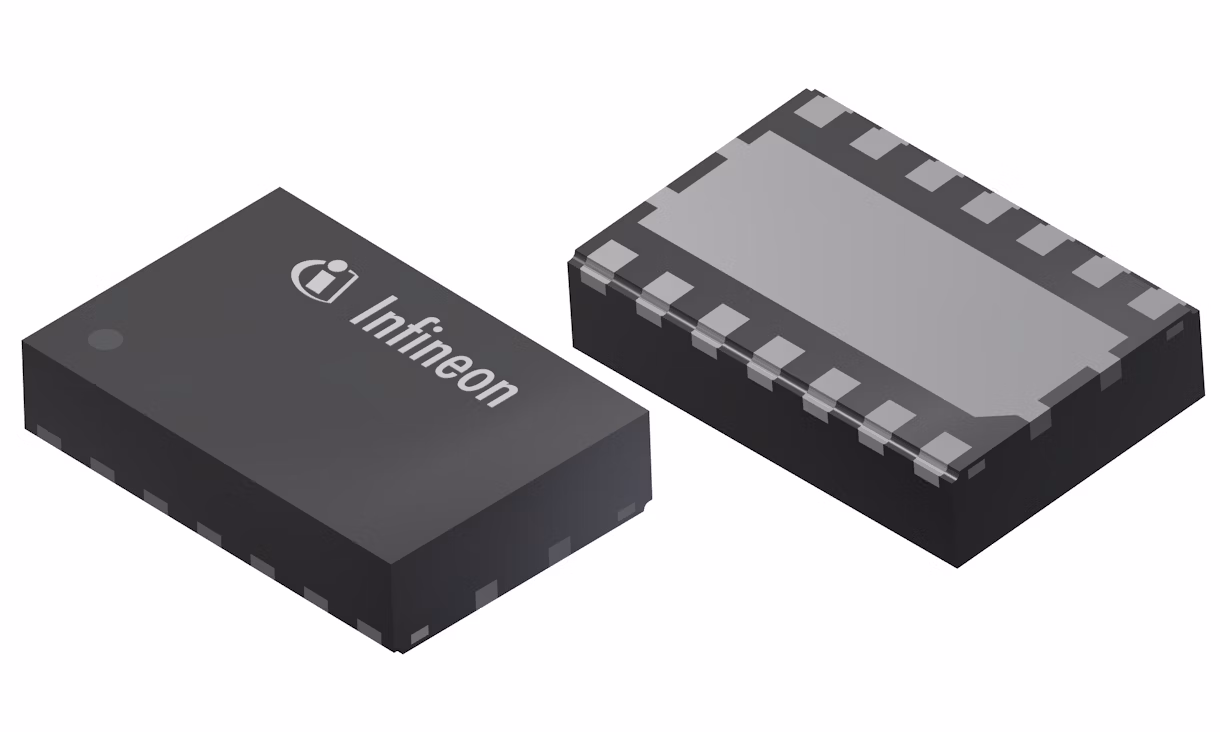

TLT9255WLC is a CAN FD 5MB with Partial Networking. SPI interface configures wake-up, INH output, mode, and undervoltage control. Flexible for automotive applications, TLT9255WLC is in tiny TSON-14 package with AOI capability. High signal symmetry minimizes electromagnetic emission without a common mode choke. RoHS compliant PG-TSON-14 package meets ISO11898-2 (2016) requirements.

Infineon Technologies TLT9255WLC Product Info

16 April 2026 0

Parameters

Additional Features

AEC-Q100 Grade 0, Partial Networking, WK, SPI, INH, Vio

Base Product

TLT9255

Bus Wake-Up Capability

Yes

Family

CAN Transceiver

Features

Partial Networking, WK, SPI, INH, Vio, AEC-Q100 Grade 0, Receive Only Mode

Language

IBIS

Planned to be available until at least

2039

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 20 µA in sleep mode

Standards

ISO11898-2

Supply Voltage

5 V, 3.3 V

Transmission Rate max

5 MBit/s

Type

CAN FD, CAN PN, CAN, CN

Wake-up Inputs

Wake-up Pin, Bus Wake-up

Apps

Automotive, Chassis domain control

Features

  • Fully compliant to ISO11898-2 (2016)
  • Infineon automotive quality
  • AEC-Q100 Grade 0 for high temps
  • HSCAN standard data rates up to 1MBit/s
  • CAN FD data rates up to 5MBit/s
  • Wide range for electromagnetic immunity
  • Excellent ESD robustness, ±10kV
  • Separate VCC and VBAT supplies
  • Fail-safe: TxD-timeout, overtemp
  • Wide VCC and VIO supply range
  • CAN short circuit proof: Gnd, Batt, VCC
