TLT9251VLE
  • TLT9251VLE

TLT9251VLE

Active and preferred

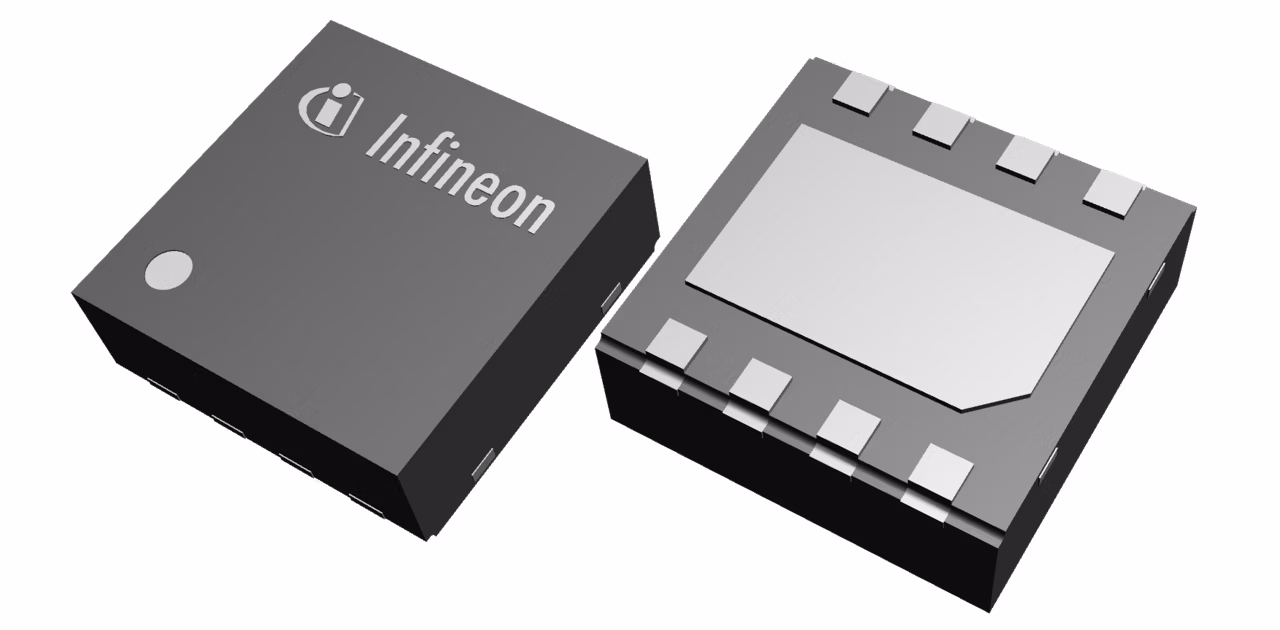

It is designed to fulfill the requirements of the following standards:ISO11898-2 (2016) physical layer specificationSAE J1939SAE J2284TLT9251VLE offers bus wake-up feature and supports 3.3 V as well as 5V supplied microcontrollers using Vio interface. TLT9251VLE is realized in tiny leadless TSON-8 package with Lead Tip Inspection (LTI) feature providing Automated Optical and being used for automotive and also for industrial applications.

Infineon Technologies TLT9251VLE Product Info

16 April 2026 0

Parameters

Additional Features

WK, Vio, AEC-Q100 Grade 0

Base Product

TLT9252x

Bus Wake-Up Capability

Yes

Family

CAN Transceiver

Features

Vio, WK, AEC-Q100 Grade 0

Language

IBIS

Planned to be available until at least

2039

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 15 µA at 5 V stand by

Standards

ISO11898-2

Supply Voltage

3.3 V, 5 V

Transmission Rate max

5 MBit/s

Type

CAN FD

Wake-up Inputs

Bus Wake-up

Features

  • ISO11898-2 (2016) and SAE J2284-4/-5
  • Infineon automotive quality
  • AEC-Q100 Grade 0 (Ta: -40°C to +150°C)
  • Guaranteed loop delay symmetry
  • Very low electromagnetic emission (EME)
  • V I/O 3.3V & 5V Adapt for µC Interface
  • Low-Power Standby Mode
  • VCC Standby Mode Off
  • Wake-up indication on the RxD output
  • EMI Immunity: Wide CM Range
  • ESD robust: +/-8kV (HBM), +/-11kV (IEC)
