TLS820F0EL V50
  • TLS820F0EL V50

TLS820F0EL V50

The TLS820F0 V50 regulators are ideal for automotive systems, with 3V to 40V input range and 40μA quiescent current. They offer 2% output accuracy, 200mA max current, fast regulation, and stability. The Reset feature supervises output voltage, and a watchdog circuit monitors the microcontroller's operation. Additionally, they provide output current limitation and overtemperature shutdown for protection.

Infineon Technologies TLS820F0EL V50 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS820Fxxx

Dropout Voltage

70 mV

Early Warning

No

Enable (=Inhibit)

Yes

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 40 V

Output Current max

200 mA

Output Voltage Type

5.0 V

Over Voltage Protection

No

Planned to be available until at least

n.a

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

40 µA

Regulator Type

High Performance

Reset

Yes

Status Output

No

Watchdog

Yes

Apps

Automotive primary power distribution unit, Automotive BMS, Automotive battery management system (BMS) - 48 V, Automotive battery management system (BMS) - high-voltage

Features

  • Wide Input Voltage Range from 3.0 V to 40 V
  • Fixed Output Voltage 5 V
  • Output Current Capability up to 200 mA
  • Output Voltage Precision ≤ ± 2 %
  • Ultra Low Current Consumption typ. 40 μA
  • Very Low Dropout Voltage typ. 70 mV @100 mA
  • Stable with Ceramic Output Capacitor of 1 μF
  • Delayed Reset at Power-On with 2 Programmable Delay Times 8.5 ms/ 16.5 ms
  • Adjustable Reset Threshold down to 2.50 V
  • Watchdog with flexible timings and current dependant deactivation:
    16 ms / 32 ms / 48 ms / 96 ms, Activated at IQ > 5.5 mA)
  • Enable, Undervoltage Reset, Overtemperature Shutdown
  • Output Current Limitation
  • Wide Temperature Range
  • Green Product (RoHS compliant)
  • AEC Qualified

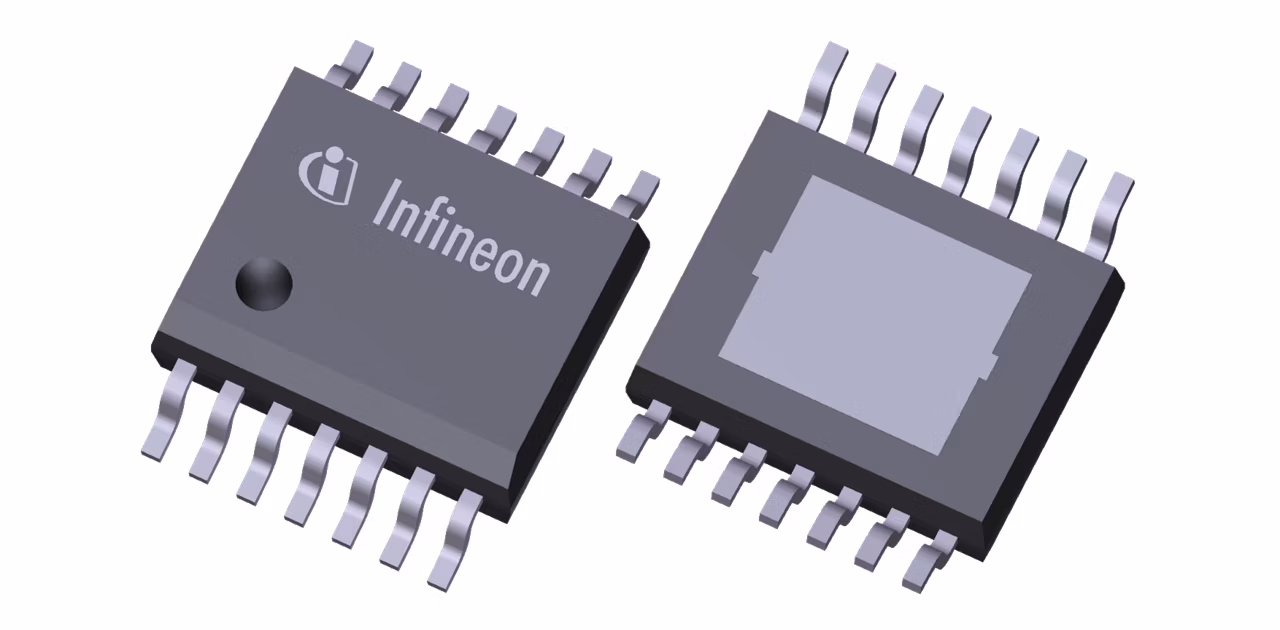

  • PG-SSOP-14
